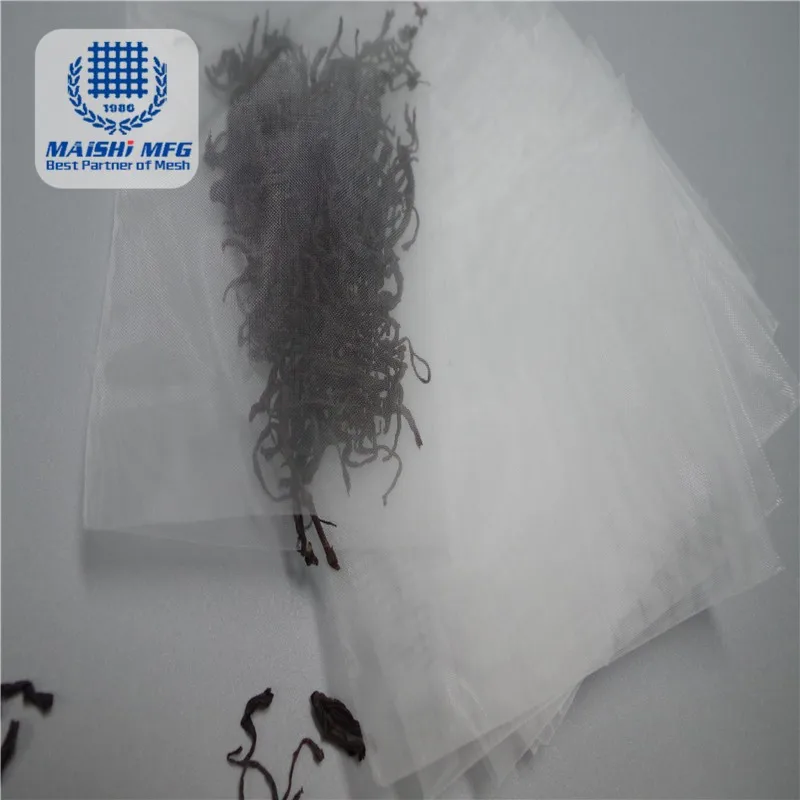

Medical Nylon 66 filter mesh

Click image to view original picture
Product/Service: Medical Nylon 66 filter mesh
Brand: maishi
Type: Filter media
Size: 10 mesh-330 mesh
Unit Price: 1.00USD/Square met  Inquiry
The min order: 100 Square met
Total Supply: 5000000 Square met
Delivery Expiry: Delivery within 3 days after payment from buyer
Validity Period: 2020-05-23
Last Update: 2019-07-08
Browse: 428
Basic Info of Company


Product detailed description
 MAISHI WIRE MESH GROUP是微米尼龙滤网的领先制造商,我们的尼龙网是根据ISO9001质量管理体系生产的。产生的网孔开口为40微米至1900微米,最大宽度为368厘米。我们的年产能超过500万平方米。货物出口到北美,南美,欧洲,亚洲,中东和非洲。

主要规格如下:

开口尺寸:从40微米到1900微米
材料:PA6(尼龙),PA66(食品级)
宽度范围:0.6米-3.68米特性
:精度高的网眼精确而规则的方孔,食品级,尺寸稳定性非常好生产过程中不进行任何化学处理
应用:尼龙网可用于食品,化学品,医疗和汽车涂料的标准和食品级。

医用尼龙66过滤网
类型

网格开放

MESH COUNT THEAD DIAMETER 公开场合 厚度


(μm)的

(目/英寸) (μm)的 (%) (μm)的
4-600 1900 10 600 60 1200
5-500 1500 13 500 55 1000
6-400 1267 15 400 57 800
7-350 1079 18 350 56 700
8-350 900 20 350 51 700
9-300 811 23 300 58 570
9-250 861 23 250 59 500
10-250 750 25 250 55 500
10-300 700 25 300 48 600
12-300 533 三十 300 40 600
12-250 583 三十 250 48 500
14-300 414 36 200 33 510
16-200 425 41 200 45 340
16-220 405 41 220 40 385
16-250 375 41 250 35 425
20-150 350 51 150 46 255
20-200 300 51 200 35 340
24-120 297 61 120 51 235
24-150 267 61 150 40 255
28-120 237 71 120 44 210
30-120 213 76 120 40 204
32-100 213 81 100 45 170
32-120 193 81 120 41 205
34-100 194 86 100 44 180
36-100 178 91 100 40 170
40-100 150 102 100 35 170
56-60 119 142 60 43 102
64-60 96 163 60 37 102
72-50 89 183 50 40 85
80-50 75 203 50 35 85
90-43 68 229 43 37 85
100-43 57 254 43 31 80
110-43 48 279 43 25 76
120-43 40 305 43 21 80
120-38 45 305 38 25 65
130-35 42 330 35 25 60

公司信息:

河北麦仕丝网集团是中国PA6,PA66,聚酯单丝滤网的顶级制造商和出口商之一。我公司自1986年开始在中国生产单丝滤网。机械(来自瑞士苏尔寿织机P7100& P7150)和生产过程中使用的设备完全基于高计算机技术。

1.专业和经验丰富的编织者。
2.始终如一的优质产品。
3.准时交货。
4.我们拥有15名研发技术人员,拥有超过10年的经验。
5. 90%的回头客。
6.合理的理赔退款制度。

特征

- Manufactured by 100% nylon
- No unwanted chemicals, no any chemicals treatment in the production process
- Very safe, very thin, food grade
- Can made by disc, tube, piece, roll any sizes and shape, max roll length 1000m
- High tensile, working temperature under 200ºC
- Very good dimensional stability
1. Due to their uniformity they can be woven with great precision to give exact and regular apertures
2. The resulting material has a very smooth surface so that the filtered particles will easily separate
3. They have high tension and low elongation

Applications

We provide precision filter fabrics for liquid filtration, separation and sifting, with special-made processing machines and equipment, MAISHI is capable of heat-slitting mesh into mesh ribbons without fraying edges.
It is widely used in filteration (wather,flour, juices. soybean milk, oil, cheese, air purification, power coating filtering in industry etc. ), printing and dyeing, the industries of petroleum, chemical, metallurgy, cement, environmental dedusting etc.

医用尼龙66过滤网

Packaing and delivery :

我们有两种用于微米尼龙过滤网的包装:1。
过滤网成卷
- 用纸管和塑料袋包装网,然后用纸箱包装。
适合大量和海运。
2.过滤网折叠
- 将网格折叠成塑料袋,然后装入纸箱。

适合小批量的折痕不需要。

医用尼龙66过滤网医用尼龙66过滤网
